Lift capacity 1500 kg
Lift height 3.1 m
Engine power 57 hp
Drive speed 26 km/h
Easy to transport with a car trailer
Optidrive™ drive circuit gives more power for the drive and hydraulic attachments

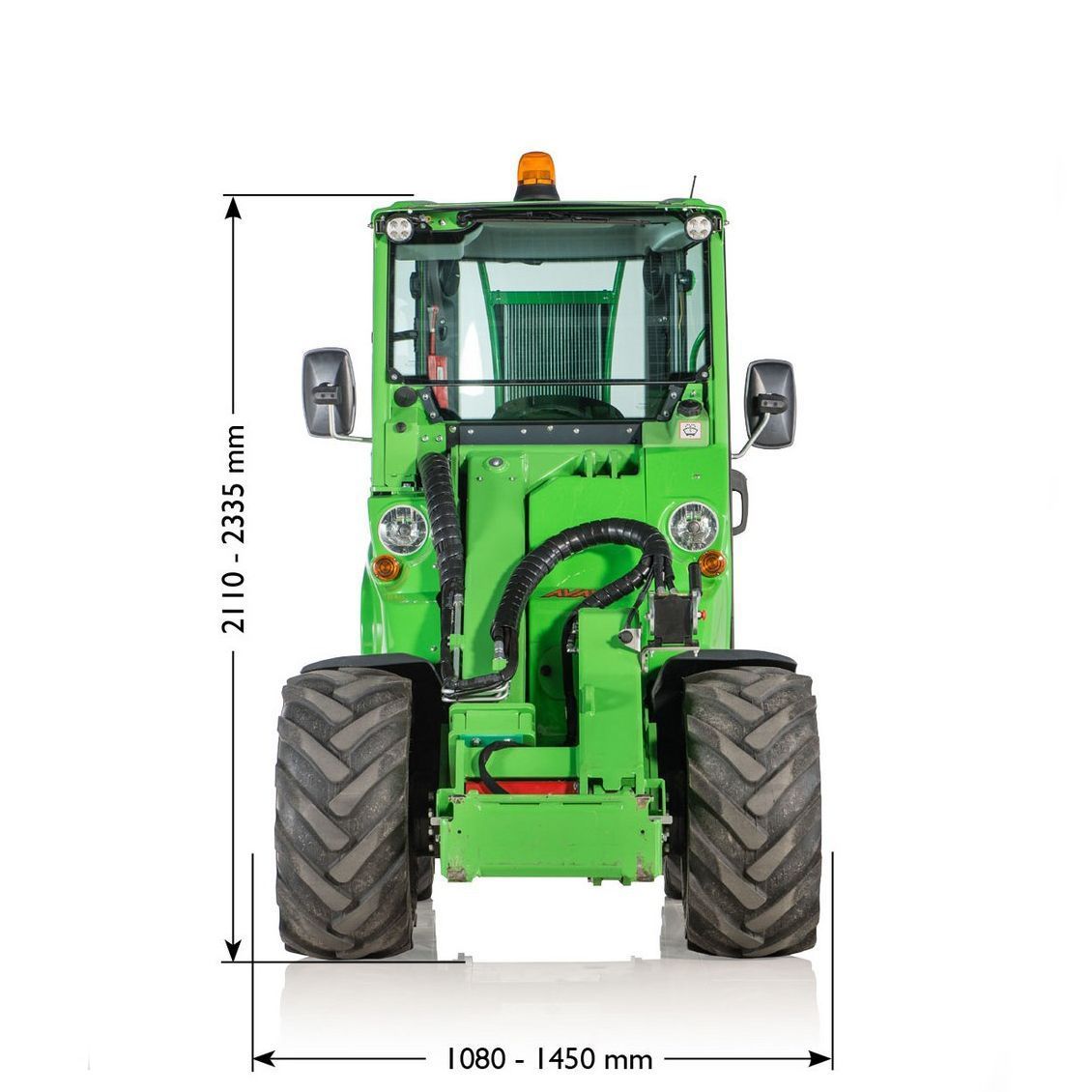

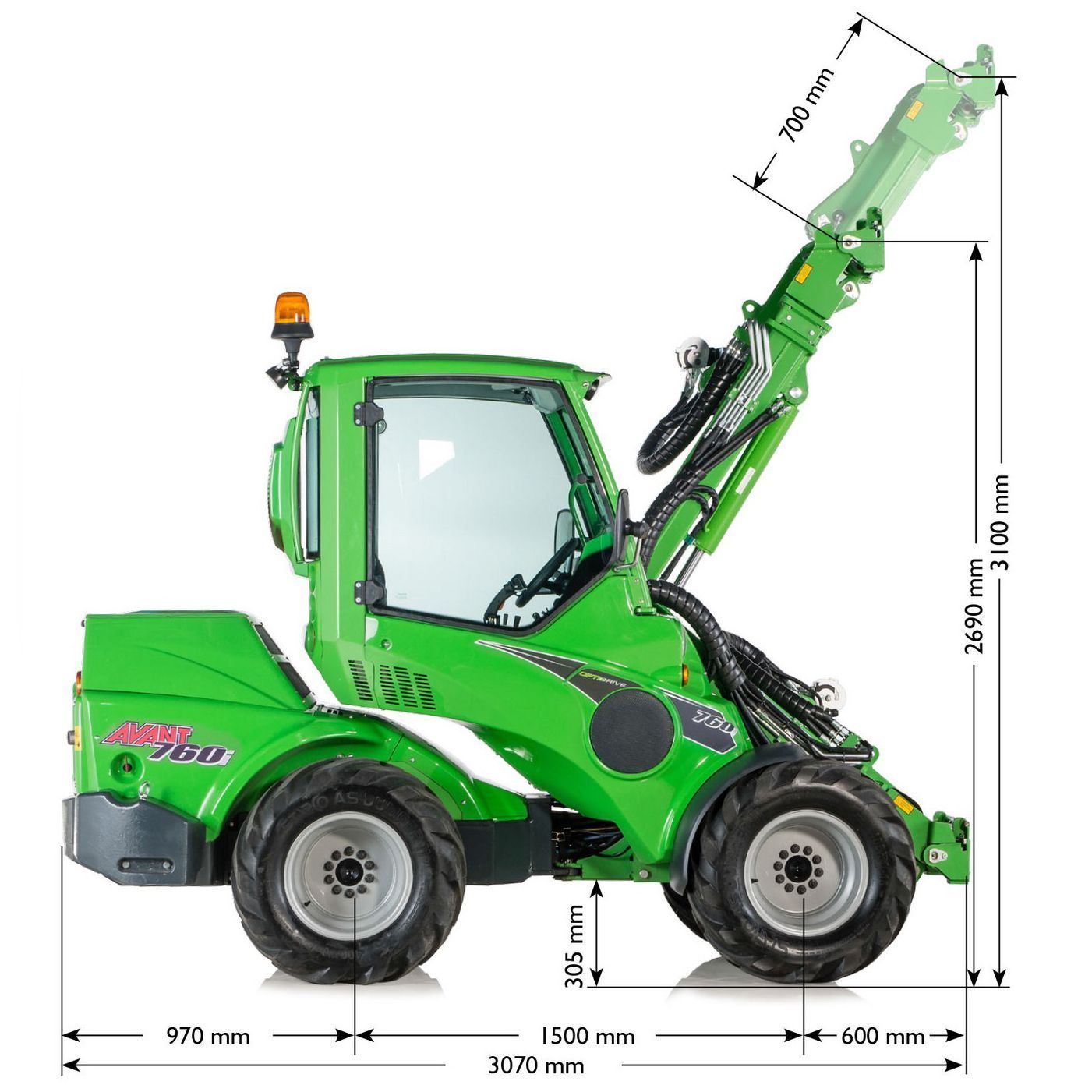

LENGTH 3060 mm
WIDTH 1450 mm
HEIGHT 2110 mm
WEIGHT 2100 kg
TURNING RADIUS INSIDE/OUTSIDE 1240/2780 mm
LIFTING HEIGHT TO PIVOT POINT 3100 mm
MAX. LIFTING CAPACITY (HYDR.) 2100 kg
MAX. TIPPING LOAD * 1400 kg
MAX. BREAKOUT FORCE / 50 CM 1700 kg
Avant's telescopic boom makes it possible to have a very compact machine with a great outreach and lift capacity. When the telescopic boom is retracted it is possible to lift heavier loads. With the boom fully extended, the reach and lift height are unparalleled.
In many cases, it is possible to load a trailer from one side thanks to the outreach of the telescopic boom and still have excellent all-round visibility.
All articulated Avant loaders are equipped with a hydrostatic drive system. There is a hydraulic drive motor on each wheel. The drive circuit is equipped with valves with which traction can be controlled in different situations.
